If you’re about to get braces or your child is, you might be curious about what these orthodontic appliances are actually made from. It’s a great question, and one that deserves more than a simple “metal and wire” answer. Modern braces are sophisticated medical devices engineered from specialized materials designed to move teeth efficiently while being biocompatible, durable, and comfortable.
Here’s what you need to know upfront: traditional braces are primarily made from stainless steel or titanium alloy brackets, nickel-titanium shape-memory archwires, and elastic or metal ligatures. Ceramic braces use polycrystalline or monocrystalline alumina for tooth-colored brackets. Clear aligners like Invisalign are made from medical-grade thermoplastic materials like SmartTrack. Each material is chosen for specific properties that affect how efficiently teeth move, how comfortable treatment feels, and how long components last.
At Freedman & Haas Orthodontics, we use high-quality orthodontic materials that have been tested and proven effective over decades of clinical use. Let’s dive deeper into exactly what braces are made of, why these materials are used, and what options exist for people with allergies or aesthetic concerns.

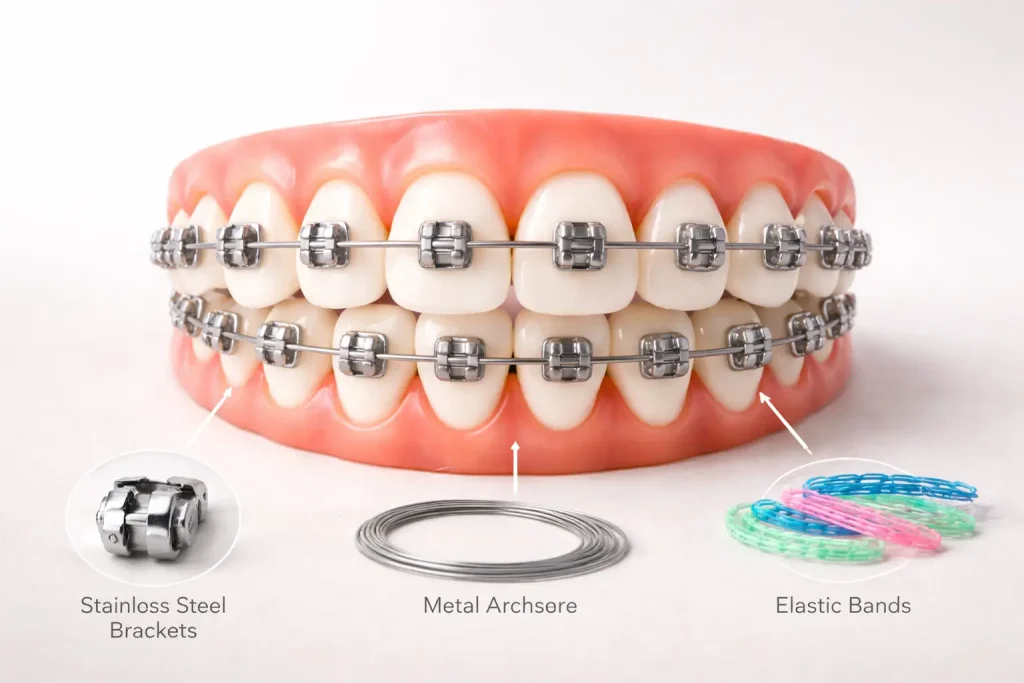

The Core Components of Braces: Brackets, Archwires, and Ligatures
Before we discuss materials, let’s clarify what we’re talking about. Braces systems consist of several components that work together.
Brackets are the small squares bonded to each tooth. They serve as handles that allow the orthodontist to apply controlled force to individual teeth. Brackets have a slot that holds the archwire and wings where elastic or metal ligatures attach.
Archwires are the thin metal wires that run through the bracket slots and connect all the brackets together. The archwire is where most of the force comes from. It’s shaped to represent the ideal tooth positions, and as it tries to return to that ideal shape, it moves teeth gradually.
Ligatures are what hold the archwire into the bracket slots. Elastic ligatures are small rubber O-rings that come in various colors. Metal ligatures are tiny twisted wires. Some modern brackets are self-ligating, meaning they have a built-in clip that holds the wire without needing separate ligatures.
Bands are metal rings cemented around molars. They’re more secure than brackets for back teeth and provide anchor points for other appliances.
Elastics, also called rubber bands, are larger bands that stretch from hooks on upper braces to hooks on lower braces. They’re used for bite correction and are changed daily by the patient.
Each of these components is made from specific materials chosen for biocompatibility, strength, elasticity, and clinical effectiveness. Let’s explore what those materials are and why they matter.
Stainless Steel and Titanium Alloys in Metal Braces
The vast majority of traditional metal braces use stainless steel as the primary material for brackets and bands. Stainless steel is an iron-based alloy that typically contains chromium and nickel, though the exact composition varies by manufacturer.
Why stainless steel? Several reasons make it ideal for orthodontic brackets. It’s incredibly strong and resistant to the forces of chewing and tooth movement. It doesn’t corrode or rust when exposed to saliva, which is important because these brackets will be in your mouth for months or years. It’s biocompatible, meaning it doesn’t cause adverse reactions in most people. It can be manufactured with precise dimensions, which is critical when bracket slot sizes need to be accurate to hundredths of a millimeter.
The most common orthodontic stainless steel is 316L or 17-4 stainless, both of which are medical-grade alloys used throughout dentistry and medicine. These alloys are designed to resist corrosion in bodily fluids while maintaining strength.
Titanium and titanium alloys are also used in some orthodontic brackets and bands, particularly for patients with nickel allergies. Pure titanium and titanium alloys are extremely biocompatible and rarely cause allergic reactions. They’re also strong and corrosion-resistant. The main downside is that titanium is more expensive than stainless steel, so titanium brackets typically cost more.
Some modern brackets incorporate titanium in strategic locations. For example, the bracket slot might be titanium while the rest of the bracket is stainless steel. This provides the benefits of titanium where the wire contacts the bracket while keeping costs reasonable.
Metal bands, which are cemented around molars, are typically made from stainless steel. They’re stronger than brackets and can withstand the heavy chewing forces on back teeth. Bands provide secure anchor points for headgear, expanders, and other appliances.
How Nickel-Titanium Shape-Memory Archwires Work
Archwires are where orthodontic materials get really interesting. The most innovative and widely used wire material is nickel-titanium, often abbreviated as NiTi.
Nickel-titanium wires have a unique property called shape memory. The wire can be bent into complex shapes to fit into misaligned brackets, but it “remembers” its original ideal arch form and continuously tries to return to that shape. This creates gentle, sustained force on teeth.
Here’s how it works on a molecular level. Nickel-titanium alloys can exist in two different crystal structures: martensite at lower temperatures and austenite at higher temperatures. When the wire is cool, it’s in the martensite phase and can be easily bent. When it warms to body temperature in your mouth, it transitions to the austenite phase and becomes stiffer, applying force as it tries to return to its pre-programmed shape.
This shape-memory property makes nickel-titanium wires ideal for early stages of treatment. They can be threaded through severely crooked brackets and will apply consistent, gentle force to begin aligning teeth. Traditional stainless steel wires would either be too stiff to engage misaligned teeth or would apply excessive force that causes pain and hyalinization.
Nickel-titanium wires also have superelasticity, meaning they can be deformed significantly and still return to their original shape without permanent deformation. This property allows them to deliver consistent forces over a wide range of tooth movement.
Modern orthodontics uses several types of nickel-titanium wires. Copper nickel-titanium adds copper to the alloy, which makes the temperature transition more gradual and can provide even gentler forces. Heat-activated nickel-titanium becomes active only at body temperature, providing maximum comfort when inserted.
As treatment progresses, orthodontists typically transition from nickel-titanium wires to stiffer stainless steel wires. Stainless steel doesn’t have shape memory but provides more precise control for final detailing and bite refinement.
What Ceramic Braces Are Made Of: Polycrystalline vs. Monocrystalline Alumina
Ceramic braces offer a tooth-colored alternative to metal braces, and they’re made from a completely different material: alumina, which is a form of aluminum oxide.
There are two types of alumina used in ceramic brackets. Polycrystalline alumina is made up of many tiny crystals pressed together. It has a slightly cloudy, translucent appearance that blends with tooth color. Polycrystalline alumina is strong, resistant to staining, and less expensive to manufacture.
Monocrystalline alumina, often marketed under brand names like Inspire ICE or Radiance, is made from a single crystal structure. It’s completely clear and translucent, more like glass. Monocrystalline alumina is more aesthetic because it’s truly transparent, but it’s also more expensive and can be more brittle than polycrystalline.
Both types of ceramic brackets are much harder than tooth enamel, which is both good and bad. The hardness makes them durable and resistant to wear, but it also means they need to be removed carefully at the end of treatment to avoid damaging tooth enamel. Orthodontists use special techniques and instruments to safely debond ceramic brackets.
One concern with ceramic brackets is fracture. While modern ceramic brackets are quite strong, they can chip or break if subjected to excessive force, especially from hard foods or bad habits like chewing ice or pens. Metal brackets will bend before they break, while ceramic brackets are more likely to fracture. This is why some orthodontists use a hybrid approach, ceramic brackets on upper front teeth where aesthetics matter most, and metal brackets on back teeth and lower teeth where strength is more important.
The elastic ligatures that hold wires in ceramic brackets are typically clear or tooth-colored to maintain the aesthetic appearance. However, these light-colored ligatures can stain from foods like coffee, tea, curry, and tomato sauce. The good news is that ligatures are changed at every adjustment appointment, usually every 4 to 8 weeks, so staining is temporary.
Clear Aligner Materials: Thermoplastic and SmartTrack Technology
Clear aligners like Invisalign are made from medical-grade thermoplastic materials, which is a fancy way of saying plastic that can be heated and molded into precise shapes.
Invisalign aligners specifically are made from a proprietary material called SmartTrack, which Align Technology developed exclusively for orthodontic use. SmartTrack is described as a multi-layer aromatic thermoplastic polyurethane/copolyester. That’s a mouthful, but what it means in practical terms is that it’s a highly engineered plastic designed to be elastic, durable, and comfortable.
Why SmartTrack instead of regular plastic? Several properties make it ideal for moving teeth. It has high elasticity, meaning it can deform to fit over teeth and then apply consistent force as it tries to return to its original shape. It’s designed to deliver gentle, controlled force rather than excessive pressure. It’s clear and nearly invisible when worn. It’s stain-resistant and maintains clarity throughout the wear period of each aligner. It’s BPA-free, latex-free, and biocompatible.
Other clear aligner systems use similar thermoplastic materials, though the exact composition varies by brand. Some use polyethylene terephthalate glycol, others use polypropylene or polycarbonate blends. The specific material affects how the aligners feel, how they fit, how much force they deliver, and how they respond to temperature changes.
Aligner materials need to walk a fine line. They must be stiff enough to move teeth but flexible enough to be inserted and removed easily. They need to maintain their shape throughout the wear period, usually 1 to 2 weeks per aligner, but they also need to be comfortable and not irritate soft tissues.
Manufacturing clear aligners involves precision 3D printing of molds for each stage of treatment, then thermoforming the plastic material over these molds under heat and pressure. The result is custom aligners that fit precisely and deliver the programmed forces needed to move teeth incrementally.
Gold-Plated and Nickel-Free Alternatives for Allergies
Nickel allergy is relatively common, affecting about 10 to 20% of the population, with higher rates in women than men. For patients with confirmed nickel allergies or sensitivities, traditional stainless steel braces can cause problems including rash, inflammation, or discomfort in the mouth.
Fortunately, several nickel-free options exist for orthodontic treatment.
Gold-plated braces use standard stainless steel brackets that are coated with gold. The gold plating creates a barrier between the nickel-containing stainless steel and the oral tissues. Gold is extremely biocompatible and rarely causes allergic reactions. Gold-plated braces have the added aesthetic benefit of looking unique and stylish rather than trying to blend in.
The downside of gold plating is that it can wear over time, especially where the archwire slides through the bracket slot. If the plating wears through, the underlying stainless steel can be exposed. Quality gold-plated brackets use thicker plating to minimize this risk.
Titanium brackets are another nickel-free option. As mentioned earlier, titanium is highly biocompatible and nickel allergies rarely react to titanium. Pure titanium and titanium alloy brackets are available, though they typically cost more than stainless steel.
For archwires, stainless steel wires contain nickel, so patients with severe nickel allergies may need alternatives. Beta-titanium wires are an option, though they have different mechanical properties than stainless steel or nickel-titanium. In some cases, coated wires with epoxy or Teflon-like coatings can create a barrier between the nickel and oral tissues.
Clear aligners like Invisalign are an excellent option for patients with nickel allergies because they contain no metal at all. The thermoplastic materials used in aligners are nickel-free and rarely cause allergic reactions.
If you have a known nickel allergy or suspect you might, bring this up during your consultation. A patch test performed by a dermatologist or allergist can confirm nickel allergy, and your orthodontist can then design a treatment plan using appropriate nickel-free materials.
How Material Choice Impacts Comfort, Durability, and Treatment Results
The materials used in your braces affect every aspect of your orthodontic experience from how treatment feels to how long it lasts to what kind of results you achieve.
Comfort is influenced heavily by wire material. Nickel-titanium wires deliver gentler forces than stainless steel, especially in early treatment when teeth are most sensitive. The shape-memory property means force remains consistent rather than dropping off rapidly, which can reduce the number of adjustments needed and make treatment more comfortable overall.
Bracket material affects comfort too. Ceramic brackets tend to have smoother, more rounded edges than metal brackets, which some patients find more comfortable against lips and cheeks. However, ceramic brackets can be bulkier than metal brackets, which some patients find less comfortable.
Durability is where material differences really show up. Metal brackets, especially stainless steel, are incredibly durable and resist breakage even with heavy chewing forces. Ceramic brackets are strong but can fracture under extreme force. Clear aligners are durable for their intended 1 to 2 week wear period but can crack if treated roughly or exposed to heat.
Wire durability matters because broken or deformed wires slow treatment. Nickel-titanium wires maintain their shape well but can fatigue over time if left in place too long. Stainless steel wires are very durable but can be permanently bent if you bite down on something hard.
Treatment efficiency is affected by how precisely materials can be manufactured and how predictably they behave. Modern bracket manufacturing achieves tolerances measured in microns, which means bracket slots are exactly the right size for specific wire dimensions. This precision allows orthodontists to deliver specific forces and achieve specific movements reliably.
The elastic modulus of materials, how stiff or flexible they are, affects how quickly and efficiently teeth move. Too stiff and you risk painful, inefficient tooth movement or bracket breakage. Too flexible and you can’t deliver enough force to trigger bone remodeling. Modern materials are engineered to hit the sweet spot.
Aesthetic considerations are material-dependent too. Metal brackets are visible but small and modern-looking. Ceramic brackets blend with tooth color. Clear aligners are nearly invisible. The choice often comes down to personal preference and lifestyle factors.
Conclusion
Modern braces are made from sophisticated, highly engineered materials designed specifically for orthodontic use. Traditional metal braces use stainless steel or titanium brackets, nickel-titanium shape-memory archwires, and elastic or metal ligatures. Ceramic braces use polycrystalline or monocrystalline alumina for tooth-colored brackets. Clear aligners like Invisalign use medical-grade thermoplastic materials like SmartTrack. All of these materials are biocompatible, durable, and designed to move teeth efficiently and comfortably.
For patients with nickel allergies, alternatives like gold-plated brackets, pure titanium brackets, or clear aligners provide effective treatment without allergic reactions. Material choice affects comfort, durability, aesthetics, and treatment outcomes, which is why orthodontists carefully select components based on each patient’s needs.
At Freedman & Haas Orthodontics in West Palm Beach, Wellington, and Indiantown, we use high-quality orthodontic materials from trusted manufacturers and customize treatment based on your specific situation, preferences, and any allergies or sensitivities you have.
Ready to learn more about your orthodontic options and the materials that will work best for you? Schedule a complimentary consultation with us at Freedman & Haas Orthodontics. We’ll evaluate your smile, discuss metal braces, ceramic braces, and Invisalign options, address any allergy concerns, and create a personalized treatment plan using the right materials for your needs.
